Essentials Vape & Smoke

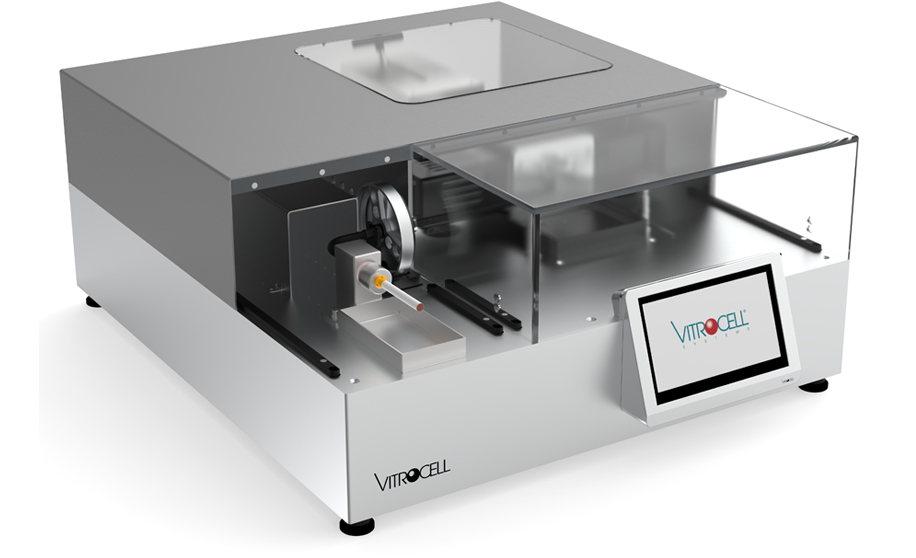

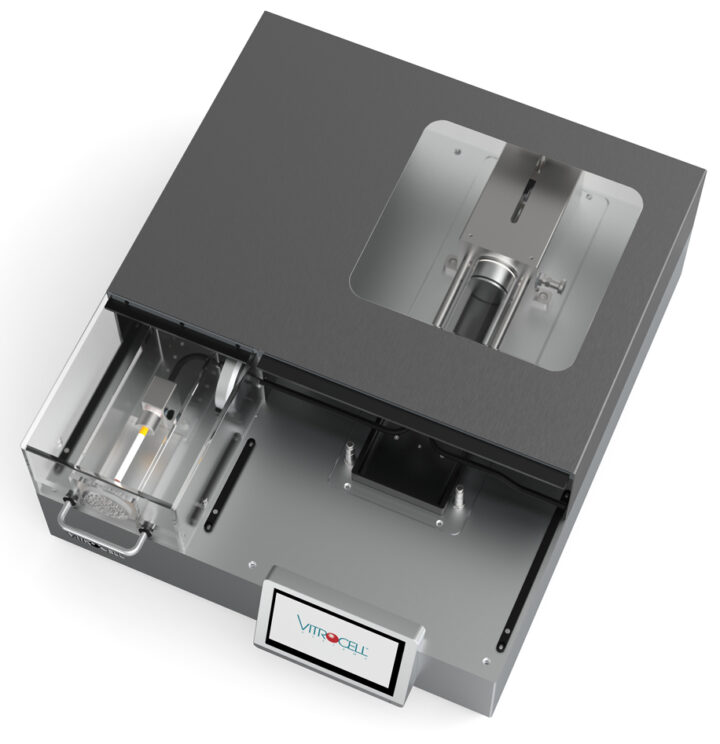

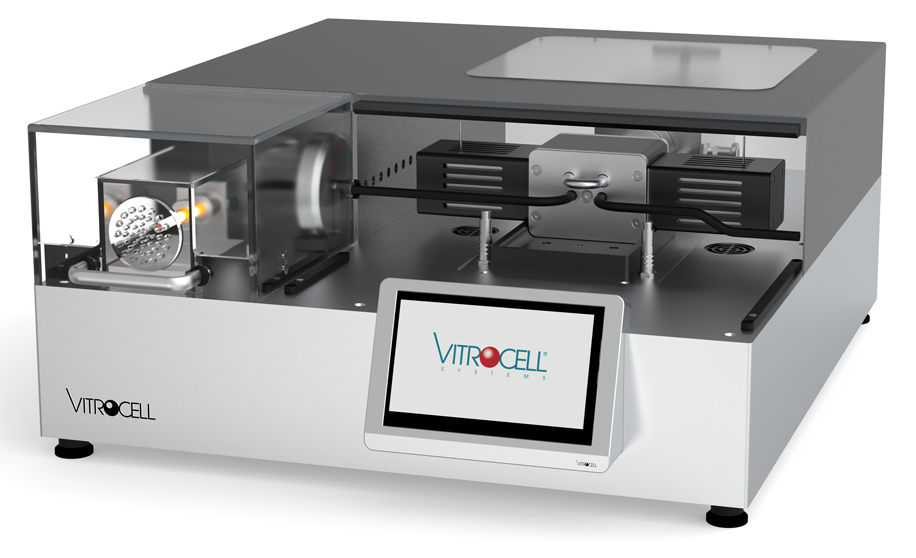

Manual Single-Port Smoking Machine


  • Economic solution with essential functionality
  • For combustion and electronic cigarettes
  • Freely programmable parameters

    • Puff Volume
    • Puff Frequency
    • Puff Duration
    • Puff Exhaust Duration
    • Bell and square shaped puff profiles
  • Fully integrated software controls via touch screen

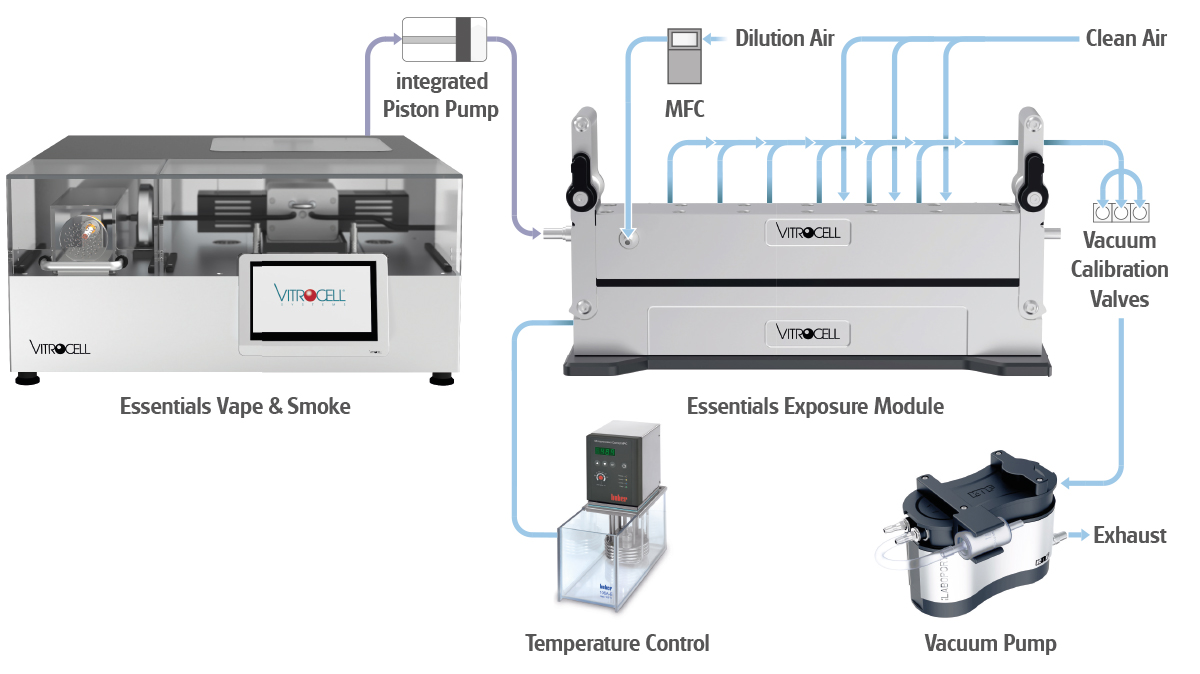

Turnkey Installation with Essentials Cell Culture Exposure Module

Available as bundle solution

The Essentials Vape & Smoke bundle is the entry-level package for tobacco an vape research at the air-liquid interface

Bundle features

  • ­­Smoking Machine for Combustion & Electronic Cigarettes
  • ­­Cell Culture Exposure System for 12- and 24-well sized inserts
  • ­­Dilution System
  • ­­Humidification
  • ­­Designed for easy use and maintenance

More about Essentials Vape & Smoke

  • Combinable with all Exposure Systems
  • Open and flexible system, allows the addition and integration of analytical equipment
  • Optimised for easy and fast cleaning
  • Lowest maintenance efforts due to accessible components
  • Features Predictive Maintenance
  • Stay Updated with V-Care:
    • software updates come to you via USB-Stick
  • Adjustable side stream velocity
  • Proven and versatile Cigarette Holder System
  • Compact design for shortest distances and low dead volume
  • Contact-free valve system
  • Fully electronically driven, no compressed air supply needed
  • Seat for 44 mm and 92 mm Cambrige filter pad holder

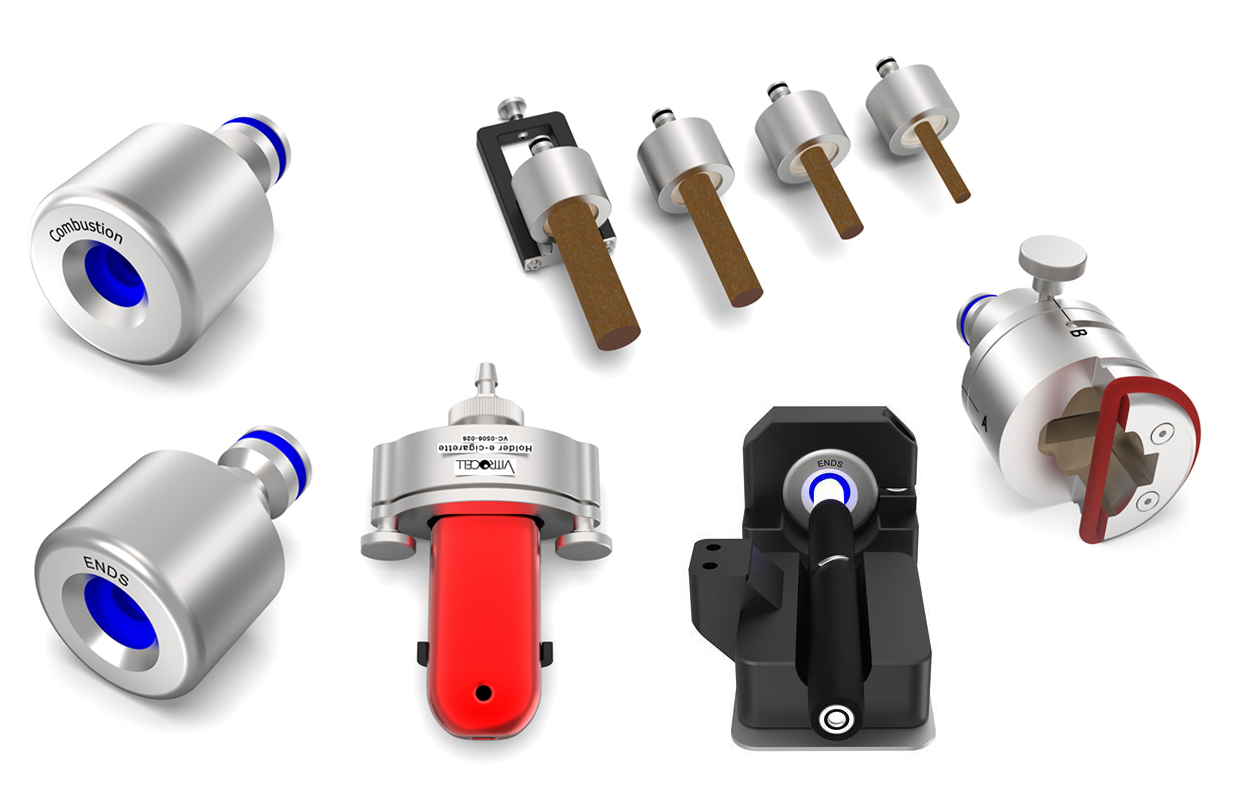

Holder Systems for Combustion Cigarettes, E-Cigarettes, Heated Tobacco Products and Cigars

Secure and tight connection of any puff-actuated device.

Essentials Vape & Smoke Technical Data

  • Benchtop footprint:
    • 600 mm ≈ 24“ width
    • 710 mm ≈ 28“ depth
    • 290 mm ≈ 11“ height
  • Voltage: 1 x 230 V, 50/60 Hz , 4 A
  • Compressed air: not necessary
  • Remote service module: Update via USB

Features

  • ­­Smoking Machine for Combustion & Electronic Cigarettes
  • Cell Culture Exposure System for 12- and 24-well sized inserts
  • Dilution System
  • Humidification
  • Designed for easy use and maintenance
